As a material handling professional, choosing the right forklift battery is paramount for operational efficiency, safety, and cost-effectiveness. A critical, often misunderstood, aspect of that decision is the battery’s voltage. This guide provides a comprehensive overview of forklift battery voltage types (24V, 36V, 48V, and 80V), helping you make informed decisions for your fleet.
Voltage, measured in volts (V), is the electrical “pressure” that drives current through a circuit. In a forklift, this translates directly to the power available to the motor. The relationship is defined by:
Power (Watts) = Voltage (Volts) x Current (Amps)
Key takeaways:
- Higher Voltage = Higher Potential Power: For a given current, a higher voltage battery can deliver more power, enabling heavier lifting, faster speeds, and better performance on inclines.
- Efficiency Considerations (I²R Losses): Electrical resistance in cables and components causes energy loss as heat (I²R losses). Higher voltage systems can operate at lower currents for the same power output, reducing these losses and improving overall efficiency. This is a fundamental principle in electrical engineering.
- Cable and Component Sizing: While higher Voltage can allow for minor gauge wiring (reducing weight), the increased complexity of the power electronics can offset some of these gains. The optimal choice is a careful balance.
Forklift batteries, particularly lithium-ion batteries, are available in several standard voltage configurations. Each is best suited for specific classes of forklifts and operational demands:
| Voltage | Typical Applications | Advantages | Disadvantages | Typical Capacity (Ah) |
| 24V | Class III (pallet jacks, stackers, walkie-riders); Light-duty Class II | Lower initial cost; Simpler charging infrastructure; Suitable for smaller warehouses and retail environments. | Limited power output; Not suitable for heavy lifting or demanding applications. | 100 – 400 |
| 36V | Class II (reach trucks, order pickers); Some smaller Class I | Good balance of power and cost; More versatile than 24V | May not be sufficient for high-throughput operations or heavier loads. | 200 – 600 |
| 48V | Class I (counterbalance forklifts); Many Class II | Most common voltage; Excellent balance of power, efficiency, and cost; Versatile for a wide range of applications. | May not be the best choice for very heavy-duty, high-capacity lifting (consider 80V). | 300 – 800 |
| 80V | Heavy-duty Class I; High-capacity, demanding applications | Highest power output; Best efficiency for heavy lifting; Reduced heat generation. | Higher initial cost; Requires more sophisticated charging infrastructure; May be overkill for lighter-duty applications. | 400 – 1000+ |
| 72V | Class I and Class II. Bridge between 48V and 80V | Offers increased power over 48V systems, reduced size compared to 80V. | Requires more sophisticated charging infrastructure; May be overkill for lighter-duty applications. | 350-900 |
Discover Advanced Lithium Battery Solutions
Explore SWBATT‘s innovative LifePO4 batteries for electric vehicles, energy storage, and more. Tailored solutions to meet your energy needs with efficiency and sustainability.
Choosing the Right Voltage: Key Considerations
Forklift OEM Recommendation: Always prioritize the forklift manufacturer’s recommended voltage. This is crucial for safety, warranty compliance, and optimal performance. The forklift’s electrical system is designed for a specific voltage range.
Load Capacity and Lift Height: Heavier loads and frequent high lifts demand more power, often necessitating higher voltages.
Duty Cycle and Runtime: Continuous operation and long shifts benefit from the improved efficiency of higher voltage systems and larger capacity batteries.
Operating Environment: Consider factors like temperature, inclines, and indoor/outdoor use.
Charging Infrastructure: Higher voltage batteries often require higher-power chargers. Assess your existing infrastructure or budget for upgrades.
Total Cost of Ownership (TCO): Higher-voltage systems may have a higher initial cost, but they can offer lower operating costs due to increased efficiency and potentially longer lifespans.
- Application Requirements: Attachments, travel distances, and ramp grades are essential to consider.
Lithium-ion vs. Lead-Acid: Voltage Stability

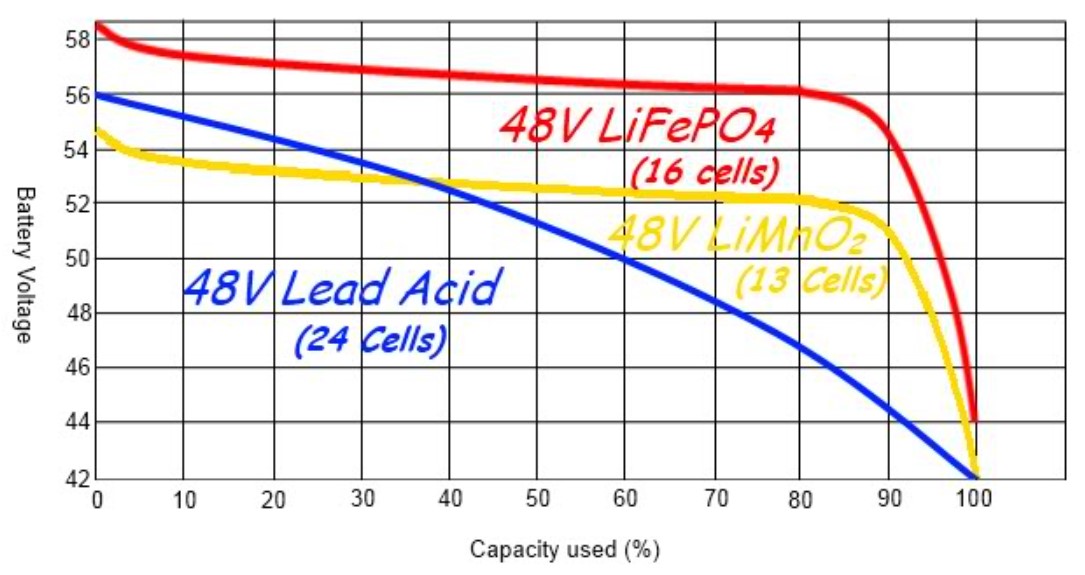

A critical distinction between lithium-ion and lead-acid batteries is voltage stability. Lead-acid batteries experience significant voltage sag under load and as they discharge. A “48V” lead-acid battery might drop below 44V, reducing performance. Lithium-ion batteries maintain a much more stable voltage throughout the discharge cycle, providing consistent power.
- Source: Battery University provides detailed information on the discharge characteristics of various battery chemistries. [Link: https://batteryuniversity.com/]
Frequently Asked Questions (FAQs)
Q: Can I replace a 48V lead-acid battery with a 48V lithium-ion battery?
- A: Often, yes, but it’s not a direct swap. You must use a lithium-ion-specific charger. The forklift’s Battery Management System (BMS) and motor controller may also need adjustments. Consult with a battery specialist for a proper conversion. Search Intent: “lead acid to lithium forklift conversion”
Q: What is the most common forklift battery voltage?
- A: 48V is the most prevalent voltage for Class I and many Class II forklifts, offering a good balance of power and cost. Search Intent: “most common forklift battery voltage”
Q: How long does it take to charge a forklift battery?
- A: Charging time depends primarily on the battery’s capacity (Ah) and the charger’s output (amps). Voltage plays a secondary role. A higher-voltage battery, with a correspondingly powerful charger, can potentially charge faster. Search Intent: “forklift battery charging time”
Q: What are typical voltages of forklift batteries?
- A: Forklift battery voltages commonly include 24V, 36V, 48V, 72V and 80V. The choice depends on forklift class, capacity, and application needs.
Q: What voltage is a Class 3 forklift?
- A: Most Class 3 forklifts, such as electric pallet jacks and stackers, utilize 24V battery systems. However, some heavier-duty Class 3 models may use 36V.
Conclusion
Choosing the correct forklift battery voltage is critical to performance, efficiency, and long-term costs. You can make informed choices that optimize your material handling operations by understanding the different voltage options, their advantages and disadvantages, and the key selection criteria. Always consult with SWBATT Forklift Lithiun Batteries manufacturer to determine the best solution for your needs and ensure proper integration with your existing or planned infrastructure.
